Objectives

In this chapter you will learn how to deploy applications with the Ansible role Ansistrano (https://ansistrano.com).

Implement Ansistrano;
Configure Ansistrano;
Use shared folders and files between deployed versions;
Deploying different versions of a site from git;
React between deployment steps.

Back to menu

Ansistrano is an Ansible role to easily deploy PHP, Python, etc. applications.

It is based on the functionality of Capistrano (http://capistranorb.com/).

Back to menu

Introduction

Back to menu

Introduction

Ansistrano requires the following to run:

• Ansible on the deployment machine,
• rsync or git on the client machine.

It can download source code from rsync, git, scp, http, S3, ...

Back to menu

Introduction

Ansistrano deploys applications by following these 5 steps:

Back to menu

Introduction

The skeleton of a deployment with Ansistrano looks like this:

/var/www/site/
├── current -> ./releases/20210718100000Z
├── releases
│   └── 20210718100000Z
│       ├── css -> ../../shared/css/
│       ├── img -> ../../shared/img/
│       └── REVISION
├── repo
└── shared
    ├── css/
    └── img/

Back to menu

You can find all the Ansistrano documentation on its Github repository (https://github.com/ansistrano/deploy).

Back to menu

Deploying the software

For this, we will use the ansistrano.deploy role in a playbook dedicated to application deployment.

Back to menu

Demo

Install the ansistrano.deploy role:

$ ansible-galaxy role install ansistrano.deploy
Starting galaxy role install process
- downloading role 'deploy', owned by ansistrano
- downloading role from https://github.com/ansistrano/deploy/archive/3.10.0.tar.gz
- extracting ansistrano.deploy to /home/ansible/.ansible/roles/ansistrano.deploy
- ansistrano.deploy (3.10.0) was installed successfully

Back to menu

Demo

Create a playbook playbook-deploy.yml to manage deployments:

---
- hosts: ansible_clients
  become: yes
  become_user: root
  vars:
    dest: "/var/www/site/"
    ansistrano_deploy_via: "git"
    ansistrano_git_repo: https://github.com/alemorvan/demo-ansible.git
    ansistrano_deploy_to: "{{ dest }}"

  roles:
     - { role: ansistrano.deploy }

Back to menu

$ ansible-playbook playbook-deploy.yml

PLAY [ansible_clients] *********************************************************

TASK [ansistrano.deploy : ANSISTRANO | Ensure deployment base path exists] *****
TASK [ansistrano.deploy : ANSISTRANO | Ensure releases folder exists]
TASK [ansistrano.deploy : ANSISTRANO | Ensure shared elements folder exists]
TASK [ansistrano.deploy : ANSISTRANO | Ensure shared paths exists]
TASK [ansistrano.deploy : ANSISTRANO | Ensure basedir shared files exists]
TASK [ansistrano.deploy : ANSISTRANO | Get release version] ********************
TASK [ansistrano.deploy : ANSISTRANO | Get release path]
TASK [ansistrano.deploy : ANSISTRANO | GIT | Register ansistrano_git_result variable]
TASK [ansistrano.deploy : ANSISTRANO | GIT | Set git_real_repo_tree]
TASK [ansistrano.deploy : ANSISTRANO | GIT | Create release folder]
TASK [ansistrano.deploy : ANSISTRANO | GIT | Sync repo subtree[""] to release path]
TASK [ansistrano.deploy : ANSISTRANO | Copy git released version into REVISION file]
TASK [ansistrano.deploy : ANSISTRANO | Ensure shared paths targets are absent]
TASK [ansistrano.deploy : ANSISTRANO | Create softlinks for shared paths and files]
TASK [ansistrano.deploy : ANSISTRANO | Ensure .rsync-filter is absent]
TASK [ansistrano.deploy : ANSISTRANO | Setup .rsync-filter with shared-folders]
TASK [ansistrano.deploy : ANSISTRANO | Get current folder]
TASK [ansistrano.deploy : ANSISTRANO | Remove current folder if it's a directory]
TASK [ansistrano.deploy : ANSISTRANO | Change softlink to new release]
TASK [ansistrano.deploy : ANSISTRANO | Clean up releases]

PLAY RECAP *******************************************************************************************************
192.168.1.11               : ok=25   changed=8    unreachable=0    failed=0    skipped=14   rescued=0    ignored=0

Back to menu

Demo

So many things done with only 11 lines of code!

$ curl http://192.168.1.11
<html>
<head>
<title>Demo Ansible</title>
</head>
<body>
<h1>Version Master</h1>
</body>
<html>

Back to menu

Demo

Checking on the remote server:

$ tree /var/www/site/
/var/www/site
├── current -> ./releases/20210722155312Z
├── releases
│   └── 20210722155312Z
│       ├── REVISION
│       └── html
│           └── index.htm
├── repo
│   └── html
│       └── index.htm
└── shared

Back to menu

Demo

Restart the deployment 3 times, then check on the client.

$ tree /var/www/site/
var/www/site
├── current -> ./releases/20210722160048Z
├── releases
│   ├── 20210722155312Z
│   │   ├── REVISION
│   │   └── html
│   │       └── index.htm
│   ├── 20210722160032Z
│   │   ├── REVISION
│   │   └── html
│   │       └── index.htm
│   ├── 20210722160040Z
│   │   ├── REVISION
│   │   └── html
│   │       └── index.htm
│   └── 20210722160048Z
│       ├── REVISION
│       └── html
│           └── index.htm
├── repo
│   └── html
│       └── index.htm
└── shared

Back to menu

Limit the number of releases

The ansistrano_keep_releases variable is used to specify the number of releases to keep.

Back to menu

Using the ansistrano_keep_releases variable, keep only 3 releases of the project. Check.

---
- hosts: ansible_clients
  become: yes
  become_user: root
  vars:
    dest: "/var/www/site/"
    ansistrano_deploy_via: "git"
    ansistrano_git_repo: https://github.com/alemorvan/demo-ansible.git
    ansistrano_deploy_to: "{{ dest }}"
    ansistrano_keep_releases: 3

  roles:
     - { role: ansistrano.deploy }

Back to menu

On the remote server:

$ tree /var/www/site/
/var/www/site
├── current -> ./releases/20210722160318Z
├── releases
│   ├── 20210722160040Z
│   │   ├── REVISION
│   │   └── html
│   │       └── index.htm
│   ├── 20210722160048Z
│   │   ├── REVISION
│   │   └── html
│   │       └── index.htm
│   └── 20210722160318Z
│       ├── REVISION
│       └── html
│           └── index.htm
├── repo
│   └── html
│       └── index.htm
└── shared

Back to menu

Using shared_paths and shared_files

---
- hosts: ansible_clients
  become: yes
  become_user: root
  vars:
    dest: "/var/www/site/"
    ansistrano_deploy_via: "git"
    ansistrano_git_repo: https://github.com/alemorvan/demo-ansible.git
    ansistrano_deploy_to: "{{ dest }}"
    ansistrano_keep_releases: 3
    ansistrano_shared_paths:
      - "img"
      - "css"
    ansistrano_shared_files:
      - "logs"

  roles:
     - { role: ansistrano.deploy }

Back to menu

On the remote server, create the file logs in the shared directory:

sudo touch /var/www/site/shared/logs

Then execute the playbook:

TASK [ansistrano.deploy : ANSISTRANO | Ensure shared paths targets are absent] *******************************************************
ok: [192.168.10.11] => (item=img)
ok: [192.168.10.11] => (item=css)
ok: [192.168.10.11] => (item=logs/log)

TASK [ansistrano.deploy : ANSISTRANO | Create softlinks for shared paths and files] **************************************************
changed: [192.168.10.11] => (item=img)
changed: [192.168.10.11] => (item=css)
changed: [192.168.10.11] => (item=logs)

Back to menu

On the remote server:

$  tree -F /var/www/site/
/var/www/site/
├── current -> ./releases/20210722160631Z/
├── releases/
│   ├── 20210722160048Z/
│   │   ├── REVISION
│   │   └── html/
│   │       └── index.htm
│   ├── 20210722160318Z/
│   │   ├── REVISION
│   │   └── html/
│   │       └── index.htm
│   └── 20210722160631Z/
│       ├── REVISION
│       ├── css -> ../../shared/css/
│       ├── html/
│       │   └── index.htm
│       ├── img -> ../../shared/img/
│       └── logs -> ../../shared/logs
├── repo/
│   └── html/
│       └── index.htm
└── shared/
    ├── css/
    ├── img/
    └── logs

Back to menu

Therefore, the files contained in these 2 folders and the logs file are always accessible via the following paths:

• /var/www/site/current/css/,
• /var/www/site/current/img/,
• /var/www/site/current/logs,

but above all they will be kept from one release to the next.

Back to menu

Managing git branch or tags

The ansistrano_git_branch variable is used to specify a branch or tag to deploy.

Back to menu

Deploy the releases/v1.1.0 branch:

---
- hosts: ansible_clients
  become: yes
  become_user: root
  vars:
    dest: "/var/www/site/"
    ansistrano_deploy_via: "git"
    ansistrano_git_repo: https://github.com/alemorvan/demo-ansible.git
    ansistrano_deploy_to: "{{ dest }}"
    ansistrano_keep_releases: 3
    ...
    ansistrano_git_branch: 'releases/v1.1.0'

  roles:
     - { role: ansistrano.deploy }

Back to menu

You can have fun, during the deployment, refreshing your browser, to see in 'live' the change.

$ curl http://192.168.1.11
<html>
<head>
<title>Demo Ansible</title>
</head>
<body>
<h1>Version 1.0.1</h1>
</body>
<html>

Back to menu

• Deploy the v2.0.0 tag:

---
- hosts: ansible_clients
  become: yes
  become_user: root
  vars:
    dest: "/var/www/site/"
    ansistrano_deploy_via: "git"
    ansistrano_git_repo: https://github.com/alemorvan/demo-ansible.git
    ansistrano_deploy_to: "{{ dest }}"
    ansistrano_keep_releases: 3
    ...
    ansistrano_git_branch: 'v2.0.0'

  roles:
     - { role: ansistrano.deploy }

Back to menu

$ curl http://192.168.1.11
<html>
<head>
<title>Demo Ansible</title>
</head>
<body>
<h1>Version 2.0.0</h1>
</body>
<html>

Back to menu

Actions between deployment steps

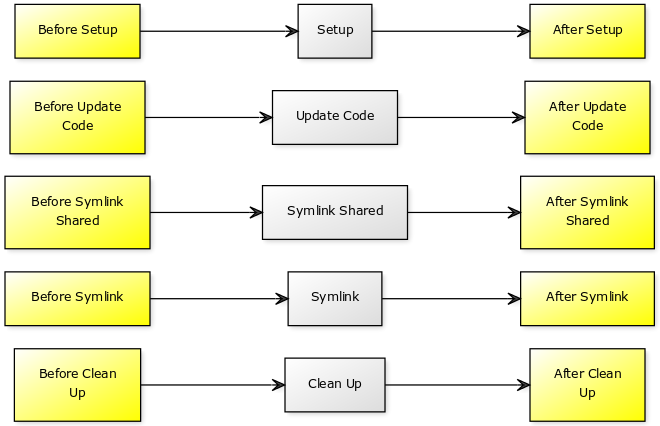

A deployment with Ansistrano respects the following steps:

Back to menu

It is possible to intervene before and after each of these steps.

A tasks file can be included through the variables provided for this purpose:

• ansistrano_before_<task>_tasks_file
• or ansistrano_after_<task>_tasks_file

Back to menu

Easy example: send an email (or whatever you want like Slack or Mattermost notification) at the beginning of the deployment:

---
- hosts: ansible_clients
  become: yes
  become_user: root
  vars:
    dest: "/var/www/site/"
    ...
    ansistrano_git_branch: 'v2.0.0'
    ansistrano_before_setup_tasks_file: "{{ playbook_dir }}/deploy/before-setup-tasks.yml"

  roles:
     - { role: ansistrano.deploy }

Back to menu

Create the file deploy/before-setup-tasks.yml:

---
- name: Send a mail
  mail:
    subject: Starting deployment on {{ ansible_hostname }}.
  delegate_to: localhost

TASK [ansistrano.deploy : include] *************************************************************************************
included: /home/ansible/deploy/before-setup-tasks.yml for 192.168.10.11

TASK [ansistrano.deploy : Send a mail] *************************************************************************************
ok: [192.168.10.11 -> localhost]

Back to menu

You will probably have to restart some services at the end of the deployment, to flush caches for example. Let's restart Apache at the end of the deployment:

---
- hosts: ansible_clients
  become: yes
  become_user: root
  vars:
    dest: "/var/www/site/"
    ...
    ansistrano_git_branch: 'v2.0.0'
    ansistrano_before_setup_tasks_file: "{{ playbook_dir }}/deploy/before-setup-tasks.yml"
    ansistrano_after_symlink_tasks_file: "{{ playbook_dir }}/deploy/after-symlink-tasks.yml"

  roles:
     - { role: ansistrano.deploy }

Back to menu

Create the file deploy/after-symlink-tasks.yml:

---
- name: restart apache
  systemd:
    name: httpd
    state: restarted

TASK [ansistrano.deploy : include] *************************************************************************************
included: /home/ansible/deploy/after-symlink-tasks.yml for 192.168.10.11

TASK [ansistrano.deploy : restart apache] **************************************************************************************
changed: [192.168.10.11]

Back to menu

As you have seen during this chapter, Ansible can greatly improve the life of the system administrator. Very intelligent roles like Ansistrano are "must haves" that quickly become indispensable.

Using Ansistrano, ensures that good deployment practices are respected, reduces the time needed to put a system into production, and avoids the risk of potential human errors. The machine works fast, well, and rarely makes mistakes!

Back to menu

Questions ?
