1 - Ansible Basics

Learning Ansible with Rocky

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Objectives

In this chapter you will learn how to work with Ansible.

Implement Ansible;
Apply configuration changes on a server;
Create first Ansible playbooks;

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Plan

Generalities
Installation
Ansible CLI
Deployment
The modules
Playbooks

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Generalities 1/3

Ansible centralizes and automates administration tasks. It is:

  • agentless
  • idempotent
  • SSH Protocol (Linux), WinRM Protocol (Windows), API calls
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Generalities 2/3

The opening of SSH or WinRM flows to all clients from the Ansible server, makes it a critical element of the architecture that must be carefully monitored.

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Generalities 3/3

Ansible can manage differents OS, network equipments, and even containers!

  • Linux,
  • Windows,
  • Docker,
  • Network (junos, fortios, ...)
  • ...
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

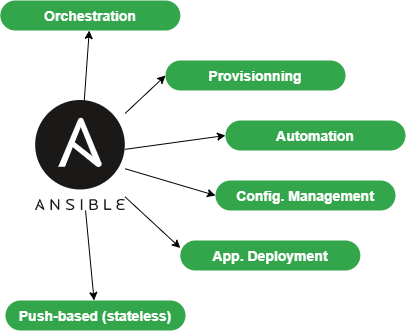

Ansible functionalities

right:50%

Ansible is "push-based" (stateless).

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

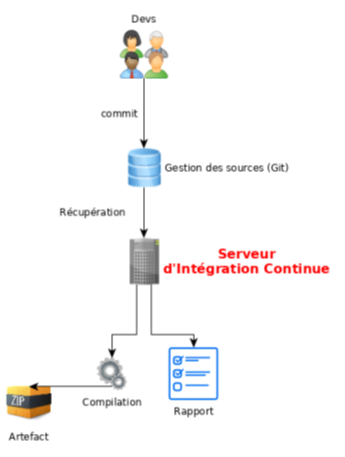

A little word about devops

Optimize the work of all the teams:

  • build
  • run
  • change

right:20%

implementing continuous integration/deployment
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu




To offer a graphical interface to your daily use of Ansible, you can install some tools like Ansible Tower (RedHat), which is not free, its opensource counterpart Awx, or other projects like Jenkins and the excellent Rundeck can also be used.

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

The Ansible vocabulary

The management machine is the server on which Ansible is installed (no software is deployed on the managed servers.).

  • task
  • module
  • inventory
  • playbook
  • role
  • fact
  • handler
  • collection
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu



Questions ?

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu



Installation on the management server

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Ansible is available in the repositories of the main distributions.

On Rocky 9 / RHEL 9 (EPEL repo) :

sudo dnf install epel-release
sudo dnf makecache
sudo dnf install ansible

On Debian (Launchpad repo) :

sudo apt-get install ansible
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Configuration files

The server configuration is located under /etc/ansible

The main configuration file (commands, modules, plugins, and ssh configuration):

/etc/ansible/ansible.cfg

The inventory file: (declaration of clients and groups):

/etc/ansible/hosts
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

The main configuration file

ansible-config command generate a new configuration file:

usage: ansible-config [-h] [--version] [-v] {list,dump,view,init} ...

View ansible configuration.

positional arguments:
  {list,dump,view,init}
    list                Print all config options
    dump                Dump configuration
    view                View configuration file
    init                Create initial configuration
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

The main configuration file

Example:

ansible-config init --disabled > /etc/ansible/ansible.cfg
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

The inventory file

The inventory file can be written in different formats (including yaml):

Creation of a Rocky9 group containing 2 targets:

[Rocky9]
172.16.1.210
172.16.1.211
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

The inventory file

Creating a group of groups:

[rocky:children]
rocky8
rocky9
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu



Questions ?

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu



Ansible CLI

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

ansible command line usage

The ansible command launches a task on one or more target hosts.

ansible <host-pattern> [-m module_name] [-a args] [options]
Option Information
-m module Runs the module called
-a 'arguments' The arguments to pass to the module.
-b -K Requests a password and runs the command with higher privileges.
--user=username Uses this user to connect to the target host instead of the current user.
--become-user=username Executes the operation as this user (default: root).
-C Simulation. Does not make any changes to the target but tests it to see what should be changed.
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Since we have not yet configured authentication on our 2 test servers, not all the following examples will work. They are given as examples to facilitate understanding, and will be fully functional later in this chapter.

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

List the hosts belonging to the rocky9 group:

ansible rocky9 --list-hosts
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Ping a host group with the ping module:

ansible rocky9 -m ping
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Display facts from a host group with the setup module:

ansible rocky9 -m setup
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Run a command on a host group by invoking the command module with arguments:

ansible rocky9 -m command -a 'uptime'
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Run a command with administrator privileges:

ansible rocky9 --become -m command -a 'reboot'
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Run a command using a custom inventory file:

ansible rocky9 -i ./local-inventory -m command -a 'date'

As in this example, it is sometimes simpler to separate the declaration of managed devices into several files (by cloud project for example) and provide Ansible with the path to these files, rather than to maintain a long inventory file.

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu



Questions ?

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu



Deployment

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Preparing the client

On both management machine and clients, we will create an ansible user dedicated to the operations performed by Ansible. This user will have to use sudo rights, so it will have to be added to the wheel group.

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Preparing the client

This user will be used:

  • On the administration station side: to run ansible commands and ssh to managed clients.
  • On the managed stations (here the server that serves as your administration station also serves as a client, so it is managed by itself) to execute the commands launched from the administration station: it must therefore have sudo rights.
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Preparing the client

On both machines, create an ansible user, dedicated to ansible:

$ sudo useradd ansible
$ sudo usermod -aG wheel ansible

Set a password for this user:

$ sudo passwd ansible
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Preparing the client

Modify the sudoers config to allow members of the wheel group to sudo without password:

$ sudo visudo
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Preparing the client

Our goal here is to comment out the default, and uncomment the NOPASSWD option so that these lines look like this when we are done:

## Allows people in group wheel to run all commands
# %wheel  ALL=(ALL)       ALL

## Same thing without a password
%wheel        ALL=(ALL)       NOPASSWD: ALL
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Test with the ping module

By default, password login is not allowed by Ansible.

Uncomment the following line from the [defaults] section in the /etc/ansible/ansible.cfg configuration file and set it to True:

ask_pass      = True
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Test with the ping module

When using management from this point on, start working with this new user:

$ sudo su - ansible
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Test with the ping module

Run a ping on each server of the rocky9 group:

SHELL > ansible rocky9 -m ping
SSH password:
172.16.1.10 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}
172.16.1.11 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

You are asked for the ansible password of the remote servers, which is a security problem...

You can now test the commands that didn't work previously in this chapter.

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Key authentication

Password authentication will be replaced by a much more secure private/public key authentication.

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Creating an SSH key

The dual-key will be generated with the command ssh-keygen on the management station by the ansible user:

SHELL > ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/home/ansible/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/ansible/.ssh/id_rsa.
Your public key has been saved in /home/ansible/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:Oa1d2hYzzdO0e/K10XPad25TA1nrSVRPIuS4fnmKr9g ansible@localhost.localdomain
The key's randomart image is:
+---[RSA 3072]----+
|           .o . +|
|           o . =.|
|          . . + +|
|         o . = =.|
|        S o = B.o|
|         = + = =+|
|        . + = o+B|
|         o + o *@|
|        . Eoo .+B|
+----[SHA256]-----+
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Creating an SSH key

The public key can be copied to the servers:

# ssh-copy-id ansible@172.16.1.10
# ssh-copy-id ansible@172.16.1.11

Re-comment the following line from the [defaults] section in the /etc/ansible/ansible.cfg configuration file to prevent password authentication

# ask_pass      = True
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Private key authentication test

For the next test, the shell module, allowing remote command execution, is used:

# ansible rocky8 -m shell -a "uptime"
172.16.1.10 | SUCCESS | rc=0 >>
 12:36:18 up 57 min,  1 user,  load average: 0.00, 0.00, 0.00

172.16.1.11 | SUCCESS | rc=0 >>
 12:37:07 up 57 min,  1 user,  load average: 0.00, 0.00, 0.00

No password is required, private/public key authentication works!

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

In production environment, you should now remove the ansible passwords previously set to enforce your security (as now an authentication password is not necessary).

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu



Questions ?

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu



The modules

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

The modules

The list of modules classified by category can be found here.

Ansible offers more than 750!

The modules are now grouped into module collections, a list of which can be found here.

Collections are a distribution format for Ansible content that can include playbooks, roles, modules, and plugins.

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

The modules

A module is invoked with the -m option of the ansible command:

ansible <host-pattern> [-m module_name] [-a args] [options]

There is a module for almost every need! It is thus advised, instead of using the shell module, to look for a module adapted to the need.

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Each category of need has its own module. Here is a non-exhaustive list:

Type Examples
System Management user (users management), group (groups management), etc.
Software management dnf,yum, apt, pip, npm
File management copy, fetch, lineinfile, template, archive
Database management mysql, postgresql, redis
Cloud management amazon S3, cloudstack, openstack
Cluster management consul, zookeeper
Send commands shell, script, expect
Downloads get_url
Source management git, gitlab
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Example of software installation

The dnf module allows for the installation of software on the targets:

# ansible rocky8 --become -m dnf -a name="httpd"
172.16.1.10 | SUCCESS => {
    "changed": true,
    "msg": "",
    "rc": 0,
    "results": [
      ...
      \n\nComplete!\n"
    ]
}
172.16.1.11 | SUCCESS => {
    "changed": true,
    "msg": "",
    "rc": 0,
    "results": [
      ...
    \n\nComplete!\n"
    ]
}
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Example of software installation

The installed software being a service, it is now necessary to start it with the module systemd:

# ansible rocky8 --become  -m systemd -a "name=httpd state=started"
172.16.1.10 | SUCCESS => {
    "changed": true,
    "name": "httpd",
    "state": "started"
}
172.16.1.11 | SUCCESS => {
    "changed": true,
    "name": "httpd",
    "state": "started"
}
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Try to launch those last 2 commands twice. You will observe that the first time Ansible will take actions to reach the state set by the command. The second time, it will do nothing because it will have detected that the state is already reached!

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu



Questions ?

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Exercises

To help discover more about Ansible and to get used to searching the Ansible documentation, here are some exercises you can do before going on:

Do not use the shell module. Look in the documentation for the appropriate modules!

  • Create the groups Paris, Tokio, NewYork
  • Create the user supervisor
  • Change the user to have a uid of 10000
  • Change the user so that it belongs to the Paris group
  • Install the tree software
  • Stop the crond service
  • Create an empty file with 644 rights
  • Update your client distribution
  • Restart your client
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

setup module: introduction to facts

The system facts are variables retrieved by Ansible via its setup module.

Take a look at the different facts of your clients to get an idea of the amount of information that can be easily retrieved via a simple command.

We'll see later how to use facts in our playbooks and how to create our own facts.

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

# ansible ansible_clients -m setup | less
192.168.1.11 | SUCCESS => {
    "ansible_facts": {
        "ansible_all_ipv4_addresses": [
            "192.168.1.11"
        ],
        "ansible_all_ipv6_addresses": [
            "2001:861:3dc3:fcf0:a00:27ff:fef7:28be",
            "fe80::a00:27ff:fef7:28be"
        ],
        "ansible_apparmor": {
            "status": "disabled"
        },
        "ansible_architecture": "x86_64",
        "ansible_bios_date": "12/01/2006",
        "ansible_bios_vendor": "innotek GmbH",
        "ansible_bios_version": "VirtualBox",
        "ansible_board_asset_tag": "NA",
        "ansible_board_name": "VirtualBox",
        "ansible_board_serial": "NA",
        "ansible_board_vendor": "Oracle Corporation",
        ...
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Now that we have seen how to configure a remote server with Ansible on the command line, we will be able to introduce the notion of playbook. Playbooks are another way to use Ansible, which is not much more complex, but which will make it easier to reuse your code.

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu



Questions ?

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu



Playbooks

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Playbooks

Ansible's playbooks describe a policy to be applied to remote systems, to force their configuration.

Playbooks are written in an easily understandable text format that groups together a set of tasks: the yaml format.

Learn more about yaml at https://docs.ansible.com/ansible/latest/reference_appendices/YAMLSyntax.html

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Playbooks

Syntaxe:

ansible-playbook <file.yml> ... [options]

The options are identical to the ansible command.

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Example of Apache and MySQL playbook

The following playbook allows us to install Apache and MariaDB on our target servers.

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Create a test.yml file with the following content:

---
- hosts: rocky8 <1>
  become: true <2>
  become_user: root

  tasks:

    - name: ensure apache is at the latest version
      dnf: name=httpd,php,php-mysqli state=latest

    - name: ensure httpd is started
      systemd: name=httpd state=started

    - name: ensure mariadb is at the latest version
      dnf: name=mariadb-server state=latest

    - name: ensure mariadb is started
      systemd: name=mariadb state=started
...
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

<1> The targeted group or the targeted server must exist in the inventory
<2> Once connected, the user becomes root (via sudo by default)

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

The execution of the playbook is done with the command ansible-playbook:

$ ansible-playbook test.yml

PLAY [rocky8] ****************************************************************

TASK [setup] ******************************************************************
ok: [172.16.1.10]
ok: [172.16.1.11]

TASK [ensure apache is at the latest version] *********************************
ok: [172.16.1.10]
ok: [172.16.1.11]

TASK [ensure httpd is started] ************************************************
changed: [172.16.1.10]
changed: [172.16.1.11]

TASK [ensure mariadb is at the latest version] **********************************
changed: [172.16.1.10]
changed: [172.16.1.11]

TASK [ensure mariadb is started] ***********************************************
changed: [172.16.1.10]
changed: [172.16.1.11]

PLAY RECAP *********************************************************************
172.16.1.10             : ok=5    changed=3    unreachable=0    failed=0
172.16.1.11             : ok=5    changed=3    unreachable=0    failed=0
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

For more readability, it is recommended to write your playbooks in full yaml format.

In the previous example, the arguments are given on the same line as the module, the value of the argument following its name separated by an =.

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Look at the same playbook in full yaml:

---
- hosts: rocky8
  become: true
  become_user: root

  tasks:

    - name: ensure apache is at the latest version
      dnf:
        name: httpd,php,php-mysqli
        state: latest

    - name: ensure httpd is started
      systemd:
        name: httpd
        state: started

    - name: ensure mariadb is at the latest version
      dnf:
        name: mariadb-server
        state: latest

    - name: ensure mariadb is started
      systemd:
        name: mariadb
        state: started
...
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Note: dnf is one of the modules that allow you to give it a list as argument.

    - name: ensure apache is at the latest version
      dnf:
        name:
          - httpd
          - php
          - php-mysqli
        state: latest
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Note about collections

Ansible now provides modules in the form of collections.

Some modules are provided by default within the ansible.builtin collection, others must be installed manually via the:

ansible-galaxy collection install [collectionname]

where [collectionname] is the name of the collection (the square brackets here are used to highlight the need to replace this with an actual collection name, and are NOT part of the command).

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

The previous example should be written like this:

---
- hosts: rocky8
  become: true
  become_user: root

  tasks:

    - name: ensure apache is at the latest version
      ansible.builtin.dnf:
        name: httpd,php,php-mysqli
        state: latest

    - name: ensure httpd is started
      ansible.builtin.systemd:
        name: httpd
        state: started

    - name: ensure mariadb is at the latest version
      ansible.builtin.dnf:
        name: mariadb-server
        state: latest

    - name: ensure mariadb is started
      ansible.builtin.systemd:
        name: mariadb
        state: started
...
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

A playbook is not limited to one target:

---
- hosts: webservers
  become: true
  become_user: root

  tasks:

    - name: ensure apache is at the latest version
      ansible.builtin.dnf:
        name: httpd,php,php-mysqli
        state: latest

    - name: ensure httpd is started
      ansible.builtin.systemd:
        name: httpd
        state: started

- hosts: databases
  become: true
  become_user: root

    - name: ensure mariadb is at the latest version
      ansible.builtin.dnf:
        name: mariadb-server
        state: latest

    - name: ensure mariadb is started
      ansible.builtin.systemd:
        name: mariadb
        state: started
...
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Code quality

You can check the syntax of your playbook:

$ ansible-playbook --syntax-check play.yml
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu

Code quality

You can also use a "linter" for yaml:

$ dnf install -y yamllint

then check the yaml syntax of your playbooks:

$ yamllint test.yml
test.yml
  8:1       error    syntax error: could not find expected ':' (syntax)
Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu



Questions ?

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics
Back to menu







Next Chapter >>

Rocky Linux Academy > Ansible courses > 1 - Ansible Basics

The management machine: the machine on which Ansible is installed. Since Ansible is agentless, no software is deployed on the managed servers. The inventory: a file containing information about the managed servers. The tasks: a task is a block defining a procedure to be executed (e.g., create a user or a group, install a software package, etc.). A module: a module abstracts a task. There are many modules provided by Ansible. The playbooks: a simple file in yaml format defining the target servers and the tasks to be performed. A role: a role allows you to organize the playbooks and all the other necessary files (templates, scripts, etc.) to facilitate the sharing and reuse of code. A collection: a collection includes a logical set of playbooks, roles, modules, and plugins. The facts: these are global variables containing information about the system (machine name, system version, network interface and configuration, etc.). The handlers: these are used to cause a service to be stopped or restarted in the event of a change.
